Mobile field testing. Real conditions. Real results.

CapnCoil Head Unit

A purpose-built vehicle computing platform bringing navigation, entertainment, camera systems, local processing and vehicle technology together in one integrated cockpit.

Build. Deploy. Measure.

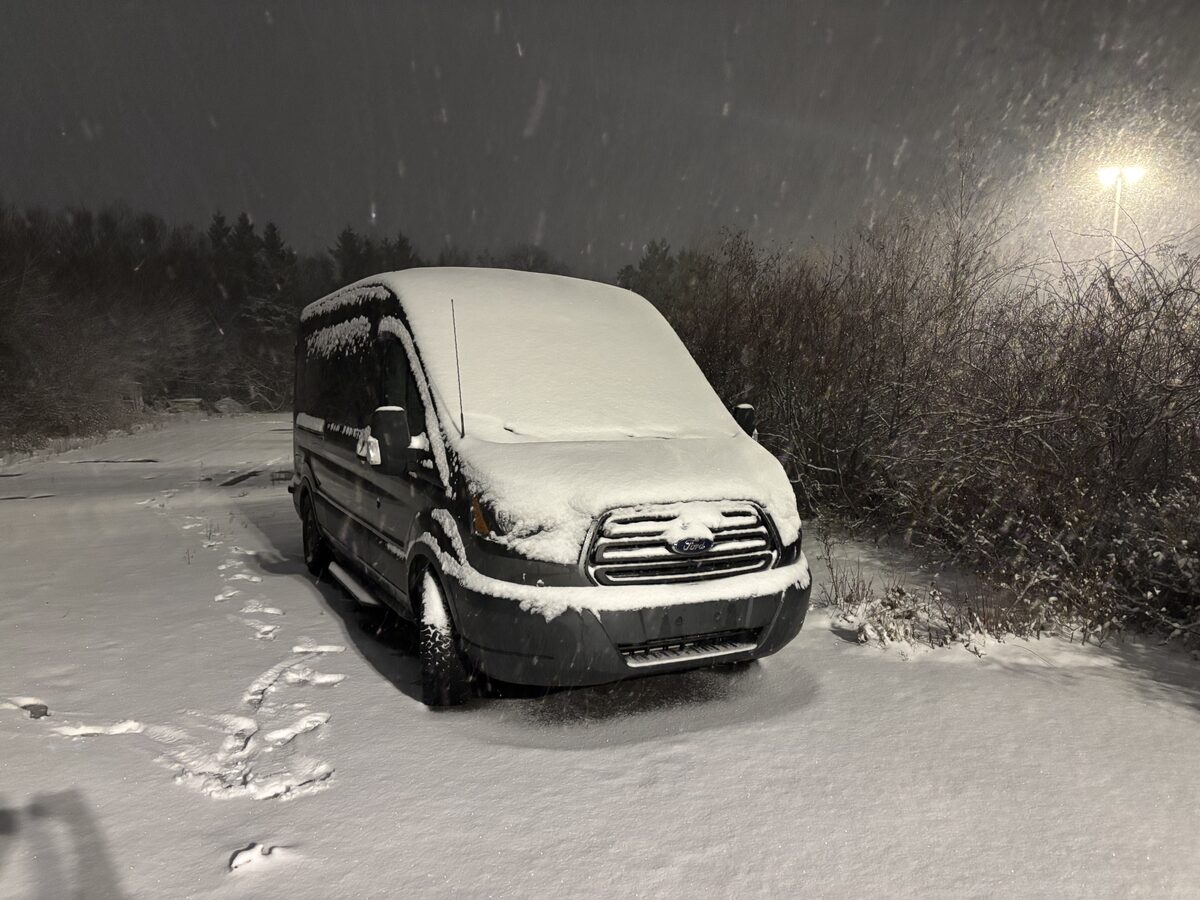

The CapnCoil Transit parked in heavy snowfall during winter systems testing.
It is developed and tested in a four-season Transit that is also a full-time home: snow load, freezing temperatures, short daylight, and repeated daily use.

What it does

One cockpit for the vehicle's computing.

Six capability areas, built and verified on the vehicle itself. Statuses are stated, not implied: what runs today is marked current, and what is not built is not described as if it were.

Navigation

Current

GNSS positioning with a Leaflet map, OSRM routing, turn-by-turn steps, waypoints and destination search. Offline tile hosting for travel beyond coverage, and spoken voice guidance on supported browsers.

Entertainment & Connectivity

Current

A local media library and playback queue served through MPV, routing to a paired Bluetooth A2DP device. Phone companion apps pair over the local network for contacts, notifications and messages.

Camera Integration

Current

A live camera wall with four assignable roles and two wired cameras, per-camera power control, and fullscreen focus. Previews are served with signed, expiring tokens. Motion capture exists; recording is not implemented.

Computing

Current

Ubuntu on the vehicle, with an Electron and React dashboard over an Express and SQLite backend. Local-first by design: navigation, media and camera intelligence run entirely on the vehicle with no cloud dependency.

Monitoring & Integration

Current

System health pages for services, storage and hardware, plus Prometheus metrics. RV telemetry is served through a provider interface — readings appear where monitoring hardware is fitted, and the provider is mock-only today.

Interface

Current

Touchscreen-first and driving-oriented: a drive view with map, speed, weather and media at a glance, and a full navigation console behind it. WebSocket updates keep the screen live without polling.

Why it is tested here

It exists to expose technology to conditions that are hard to reproduce on a workbench.

A bench test tells you whether a thing works. It rarely tells you whether it keeps working after nine months of rain, road vibration, and a driver who does not read manuals. Every factor below is a specific way equipment has actually failed on this build — the Ford Transit is the development environment, not a backdrop.

Weather
Rain, snow, and ice on hardware that was specified for an indoor environment.
Temperature
Freezing a display, a battery, and a LiFePO4 charge cycle that does not care about the datasheet.
Moisture
Condensation forming inside sealed enclosures every time the temperature swings.
Vibration
Road input loosening connectors and turning a working prototype into a broken one.
Power constraints
Running compute from a finite battery with no mains to fall back on.
Connectivity limitations
Cellular that drops in a valley and stays dropped for the rest of the trip.
Mobility
Hardware that must work while the thing it is measuring is in motion.
Continuous operation
Leaving software running unattended for weeks and finding out what it did.
Human interaction
The part that matters most, and the one hardest to simulate: a driver using it while driving.

What's new

Actively under development.

The work is ongoing and the log is public. Each entry is a completed, verified change on the vehicle — dated, and grouped by project.

Follow the head unit →
  1. perception

    Perception detection model goes live

    The pipeline crossed from motion detection to real person detection: a locally-run model now identifies people on the vehicle, with zones and line-crossing rules shaping the alerts. Nothing is recorded and nothing leaves the vehicle.

  2. cameras

    Second camera wired in

    A second physical camera joined the vehicle, with stable per-camera identities so configuration and events survive reboots and USB changes. Both cameras now run the full perception path.

  3. perception

    Degraded-mode handling for stuck cameras

    A camera that is open but seeing nothing now reports itself as degraded instead of pretending to be healthy. The system tells you when a feed is wrong rather than showing a blank frame that looks like a quiet room.

  4. perception

    Signed camera preview tokens

    Camera previews are now served with signed, expiring tokens instead of open URLs, so a preview link cannot be reused or forwarded outside the vehicle.

  5. perception

    Zone editor in the dashboard

    Detection zones can now be drawn and named directly on the camera wall, and assigned roles. Changes apply to the live camera without restarting the service.

In the field now

What is actually running.

The Mobile Platform

A Transit build focused on year-round living, off-grid power, winter operation, and practical systems integration — a real environment for evaluating how products perform under prolonged exposure and daily use.

Field Testing

Real-world evaluation of electronics, power systems, tools, and equipment under cold-weather, off-grid, and daily-use conditions — with documented findings and practical improvement suggestions.

The Audio Project

The next phase of development: an integrated audio and power system for the vehicle, built with manufacturer and distributor partners. Components are being explored — nothing has been selected yet.

Instrumentation

Measured, not merely observed.

The mobile platform carries real power management, thermal monitoring, and data logging, and the head unit reports on its own hardware. Anything tested here can be measured rather than merely watched.

Target environment: four-season northern use
4:3
Target environment: four-season northern use
Cameras wired into the live perception path
2
Cameras wired into the live perception path
Design target for cold-start operation
-30°C
Design target for cold-start operation

Partnerships

Build something real. Test it where it matters.

CapnCoil works with manufacturers and technology companies interested in seeing their products integrated, evaluated and documented in a real-world mobile environment — starting with the audio system now in development.
